Renal RNA + protein

Overview

This notebook follows the renal immune-resistance pilot bundle from canonical Xenium RNA + protein loading through joint state annotation, discordance scoring, spatial niches, and branch-level hypotheses.

Biological question

How do RNA and protein signals combine to reveal immune-resistance niches in renal carcinoma tissue, and which branch-specific programs emerge strongly enough to motivate follow-up validation?

from __future__ import annotations

import json
import os
import sys
from pathlib import Path

import pandas as pd
from IPython.display import Image, Markdown, display


def find_repo_root() -> Path:
    for candidate in (Path.cwd(), *Path.cwd().parents):
        if (candidate / "pyproject.toml").exists():
            return candidate
    raise RuntimeError("Could not locate the pyXenium repository root.")


REPO_ROOT = find_repo_root()
SRC_ROOT = REPO_ROOT / "src"
if str(SRC_ROOT) not in sys.path:
    sys.path.insert(0, str(SRC_ROOT))

pd.set_option("display.max_columns", 20)
pd.set_option("display.max_rows", 12)

RENAL_DATASET_PATH = Path(
    os.environ.get(
        "PYXENIUM_RENAL_DATASET",
        r"Y:\long\10X_datasets\Xenium\Xenium_Renal\Xenium_V1_Human_Kidney_FFPE_Protein",
    )
)
ARTIFACT_DIR = REPO_ROOT / "manuscript" / "renal_immune_resistance_pilot"
RUN_FULL_ANALYSIS = False

RENAL_DATASET_PATH, ARTIFACT_DIR

(WindowsPath('Y:/long/10X_datasets/Xenium/Xenium_Renal/Xenium_V1_Human_Kidney_FFPE_Protein'),
 WindowsPath('D:/GitHub/pyXenium/manuscript/renal_immune_resistance_pilot'))

Dataset

• Raw study: 10x Genomics Xenium FFPE human renal carcinoma RNA + protein bundle.

• Versioned outputs: manuscript/renal_immune_resistance_pilot/.

• Canonical API: load_rna_protein_anndata, annotate_joint_cell_states, compute_rna_protein_discordance, build_spatial_niches, and score_immune_resistance_program.

Setup

The notebook renders the committed renal pilot outputs from a real analysis run and keeps a single rerun cell for regenerating the full pilot locally when the dataset path is available.

payload = json.loads((ARTIFACT_DIR / "summary.json").read_text(encoding="utf-8"))
joint_states = pd.read_csv(ARTIFACT_DIR / "joint_cell_states.csv")
branch_summary = pd.read_csv(ARTIFACT_DIR / "branch_summary.csv")
top_hypotheses = pd.read_csv(ARTIFACT_DIR / "top_hypotheses.csv")

display(joint_states.head(10))
display(branch_summary[["branch", "best_model", "benchmark_score", "held_out_auc"]])
display(top_hypotheses[["branch", "hypothesis", "key_marker", "benchmark_score"]])

	state	n_cells
0	endothelial_perivascular	182783
1	unassigned	64919
2	tumor_epithelial	47704
3	emt_like_tumor	45017
4	t_cell_exhausted_cytotoxic	41864
5	macrophage_like	41765
6	b_plasma_like	41493

	branch	best_model	benchmark_score	held_out_auc
0	epithelial_emt_front	emt_only	0.664316	0.684233
1	myeloid_vascular	vascular_only	0.652438	0.543816

	branch	hypothesis	key_marker	benchmark_score
0	epithelial_emt_front	Checkpoint-active myeloid enrichment at EMT tr...	PanCK	0.664316
1	myeloid_vascular	Perivascular immune-resistance belt	CD163	0.652438

Core workflow

The renal pilot is intentionally layered: canonical loading first, then increasingly biological summaries built on the same AnnData object.

from pyXenium.multimodal import (
    annotate_joint_cell_states,
    build_spatial_niches,
    compute_rna_protein_discordance,
    load_rna_protein_anndata,
    run_renal_immune_resistance_pilot,
    score_immune_resistance_program,
)

adata = load_rna_protein_anndata(str(RENAL_DATASET_PATH), prefer="auto")
state_result = annotate_joint_cell_states(adata)
discordance_result = compute_rna_protein_discordance(adata)
niche_result = build_spatial_niches(adata)
immune_result = score_immune_resistance_program(
    adata,
    discordance_result=discordance_result,
    niche_result=niche_result,
)

The packaged shortcut is run_renal_immune_resistance_pilot(...), which is what the rerun cell below uses.

if RUN_FULL_ANALYSIS and RENAL_DATASET_PATH.exists():
    from pyXenium.multimodal import run_renal_immune_resistance_pilot

    study = run_renal_immune_resistance_pilot(
        base_path=str(RENAL_DATASET_PATH),
        output_dir=str(ARTIFACT_DIR),
        export_figures=True,
    )
    display(pd.DataFrame(study["payload"]["top_hypotheses"]))
else:
    display(Markdown("Set `RUN_FULL_ANALYSIS = True` to rerun the renal immune-resistance pilot against the local Xenium bundle."))

Set RUN_FULL_ANALYSIS = True to rerun the renal immune-resistance pilot against the local Xenium bundle.

Visual outputs

The renal pilot makes its biology legible by mapping joint states, niches, and the strongest discordance signal back into tissue space.

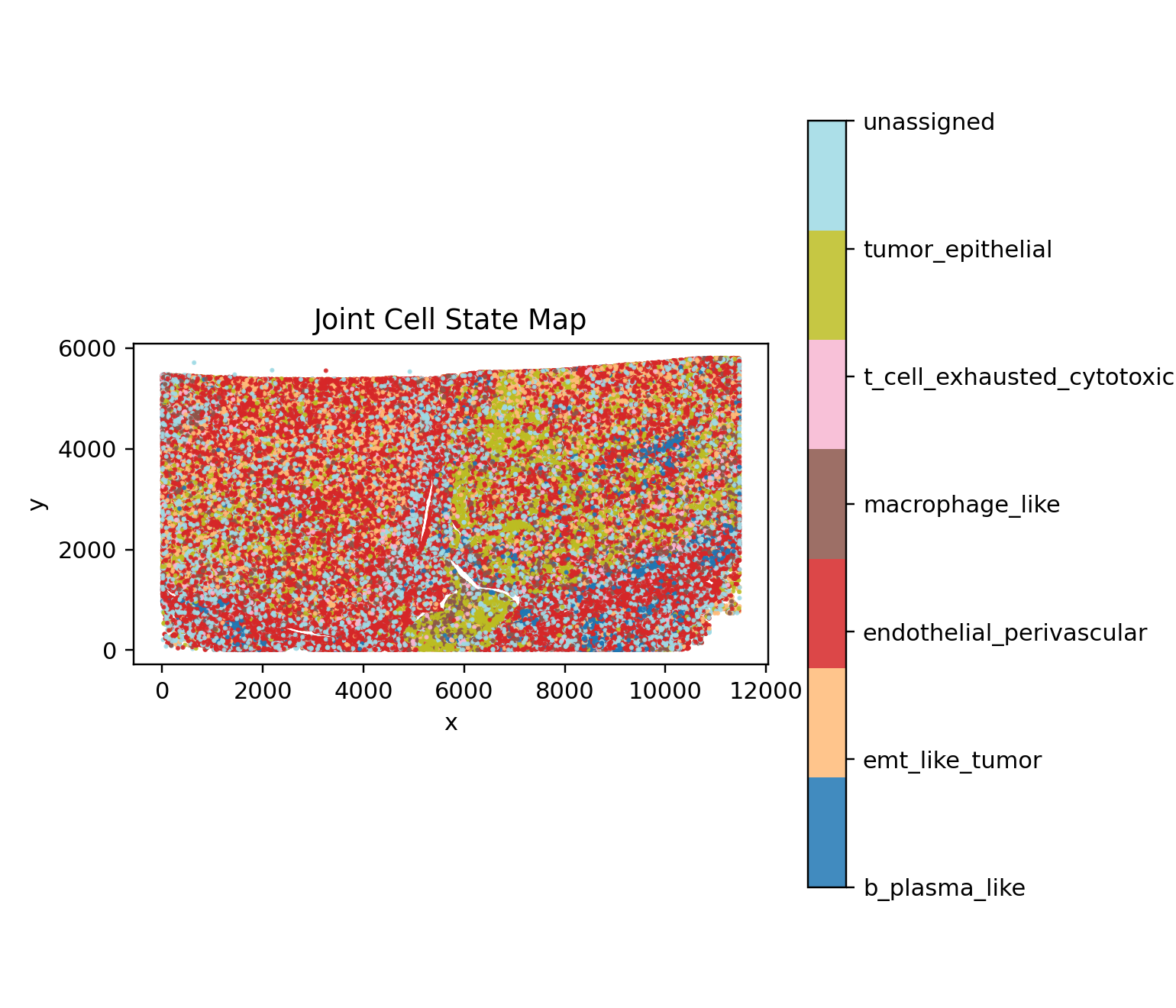

display(Image(filename=str(ARTIFACT_DIR / "figures" / "state_map.png")))

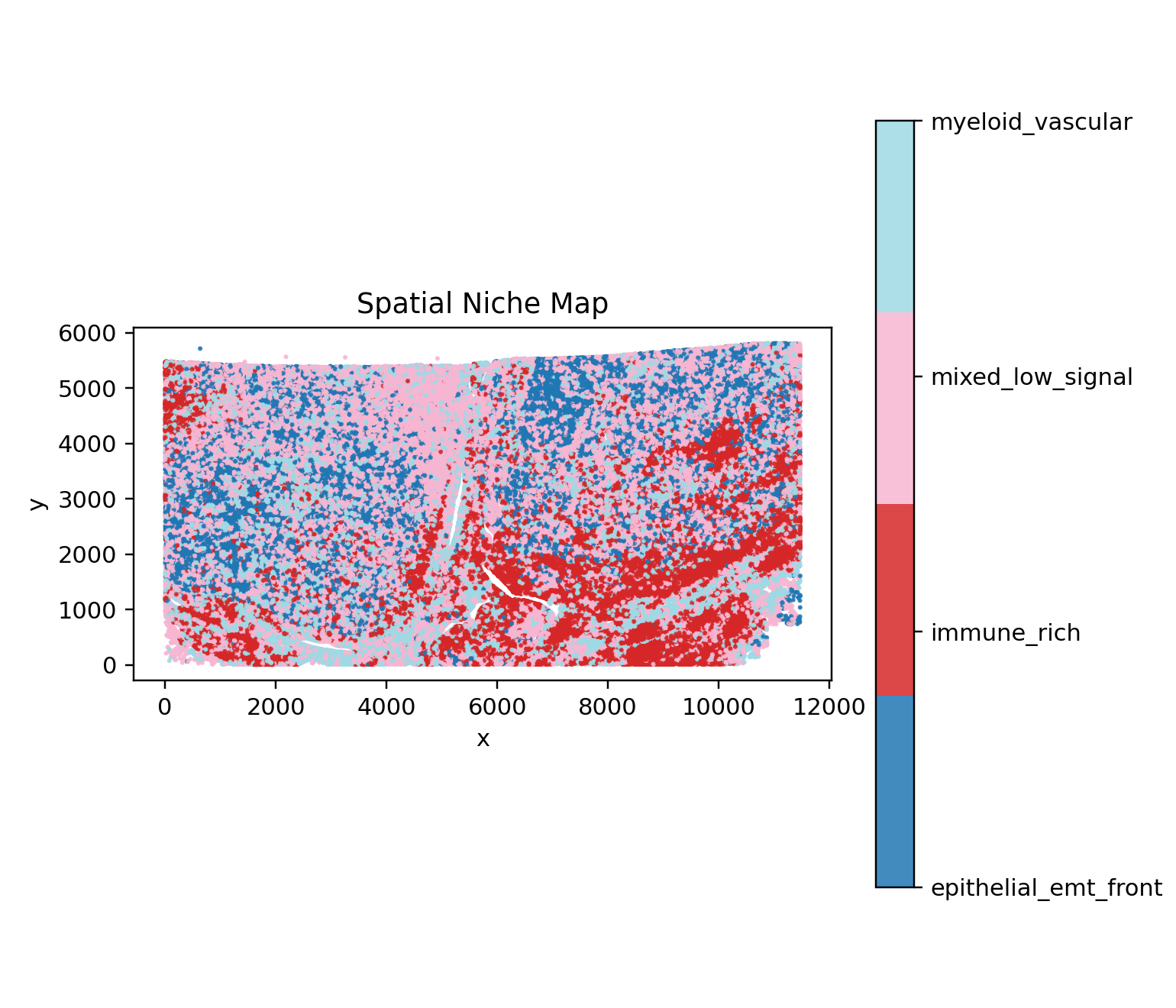

display(Image(filename=str(ARTIFACT_DIR / "figures" / "niche_map.png")))

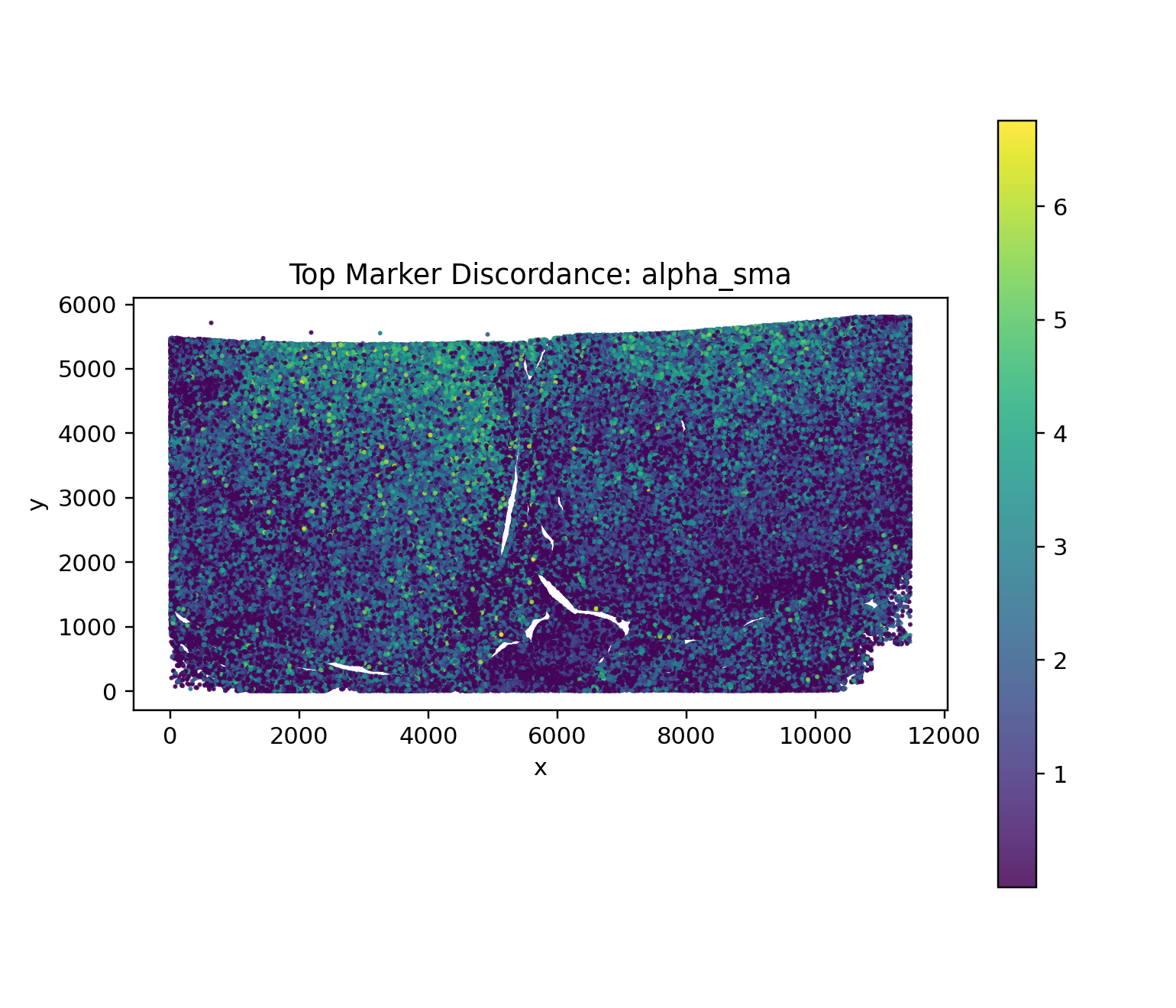

display(Image(filename=str(ARTIFACT_DIR / "figures" / "top_marker_discordance_map.png")))

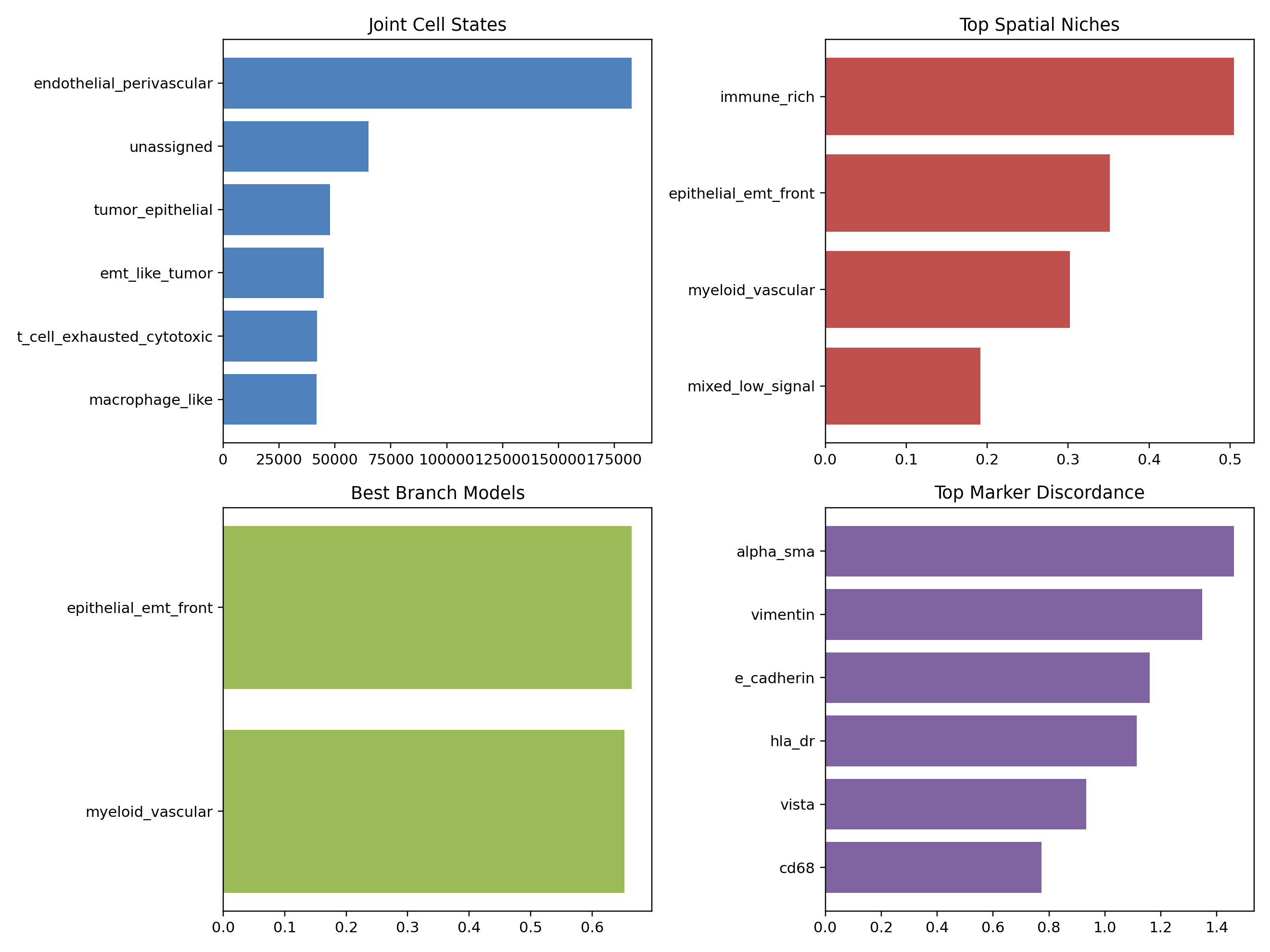

display(Image(filename=str(ARTIFACT_DIR / "figures" / "roi_panel_summary.png")))

Biological interpretation

The renal pilot is designed to surface resistance hypotheses that would be easy to miss in RNA-only or protein-only views. Joint state labels organize the tissue into interpretable cell programs, discordance metrics identify where transcript and protein evidence diverge, and branch-level benchmarking turns those observations into concrete hypotheses such as perivascular immune-resistance belts or checkpoint-active EMT transition fronts.

Caveats

• This notebook is a single-sample pilot, so the hypotheses are deliberately framed as discovery outputs rather than cohort-level claims.

• Branch benchmarking helps rank mechanisms, but it is not a substitute for orthogonal validation.

• Marker discordance can reflect assay biology, protein stability, spatial mixing, or annotation uncertainty; it should not be overinterpreted from one metric alone.

Next steps

• Reuse the same loading pattern on additional renal samples before comparing branch-level summaries across a cohort.

• Export the artifact tables for downstream review in pathology, translational, or assay-design workflows.

• Return to the io tutorial if you need to understand how the raw Xenium bundle becomes the canonical multimodal AnnData used here.
